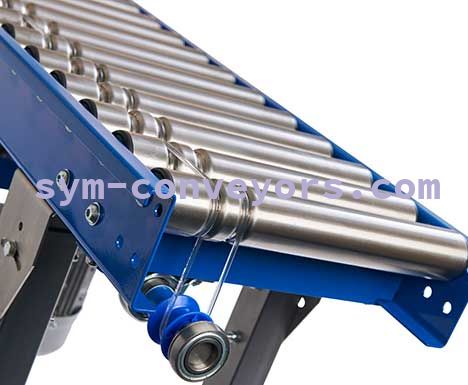

Line Shaft Roller Conveyor

Technical Parameter:

• Available options include XU30, XU30S, XU60, and XU90 models.

• All bends feature true taper plastic sleeved rollers to ensure proper load orientation.

• The inner rail has a 75mm pitch, while the 50mm diameter zinc-plated rollers are double grooved at the drive belt positions.

• Heavy-duty XU90 belts are utilized throughout the system.

• Bend units can be equipped with geared motor units (available for 60° and 90° bends only).

• For smaller products, intermediate rollers are available and supplied loose for on-site fitting.

• The lineshafts are interconnected by constant velocity (needle roller bearings) universal joints, housed within a rubber gaiter.

• All bends have an inside radius of 859mm, with angles available in 30°, 45°, 60°, and 90°.

• Accumulation is not recommended.

• Standard widths include 412mm, 462mm, 512mm, 612mm, 762mm, and 912mm, with other widths available upon request.

Key Features:

• Versatility: Line Shaft Roller Conveyors are versatile and can be customized to accommodate various product sizes, shapes, and weights, making them suitable for a wide range of applications.

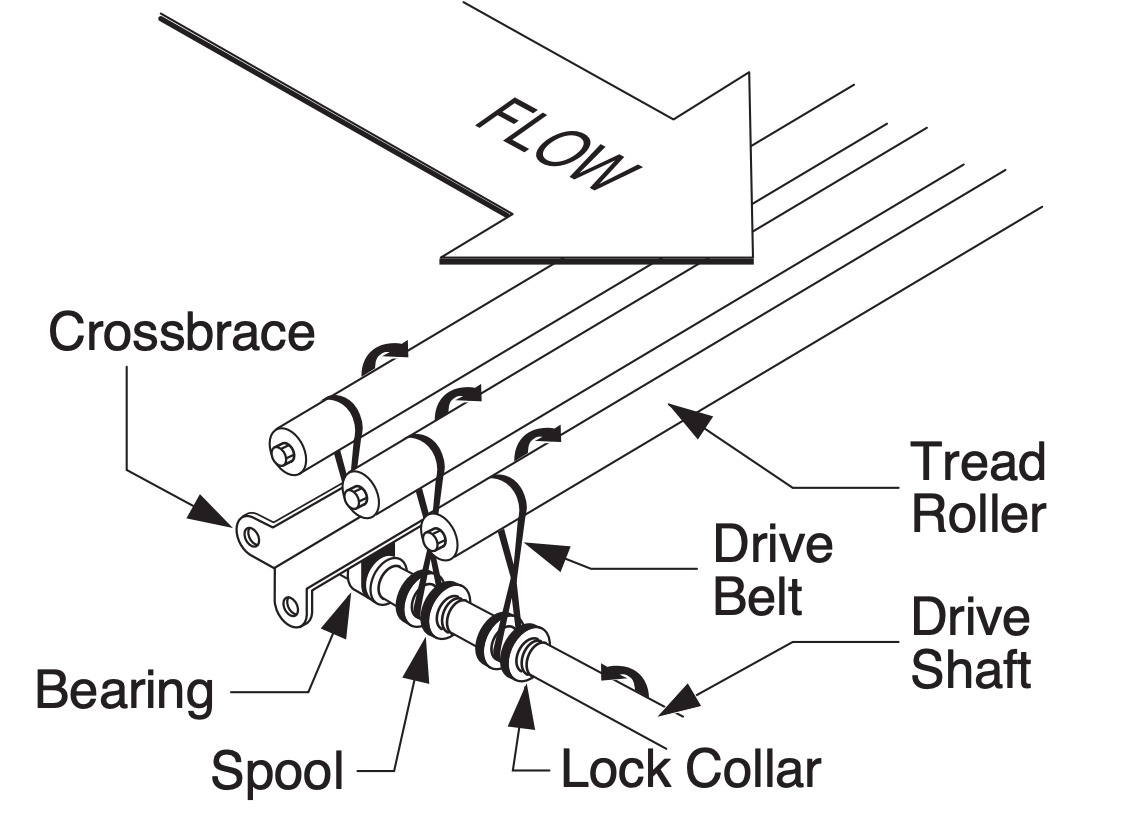

• Efficient Power Transmission: The centralized shaft running along the length of the conveyor efficiently transmits power to individual rollers, ensuring smooth and consistent movement of products along the conveyor line.

• Modular Design: These conveyors typically feature a modular design, allowing for easy installation, configuration, and expansion to adapt to changing production needs.

• Cost-Effective: Line Shaft Roller Conveyors are cost-effective solutions for material handling, offering a balance between performance and affordability. They require minimal maintenance, resulting in lower operating costs over time.

• Quiet Operation: With their simple and efficient design, Line Shaft Roller Conveyors operate quietly, creating a conducive work environment for employees.

• Space-saving: These conveyors are known for their compact design, making efficient use of floor space in warehouses, distribution centers, and manufacturing facilities.

• Flexible Layout Options: Line Shaft Roller Conveyors can be configured in straight, curved, or inclined layouts to optimize space utilization and accommodate specific production requirements.

• Compatible with Automation: They can be seamlessly integrated with automation systems, such as sensors and controls, to enhance efficiency, productivity, and throughput.

• Durability: Constructed from high-quality materials, Line Shaft Roller Conveyors are durable and robust, capable of withstanding the rigors of industrial environments.

• Safety Features: They are equipped with safety features such as guards and emergency stop buttons to ensure the safety of operators and prevent accidents.
