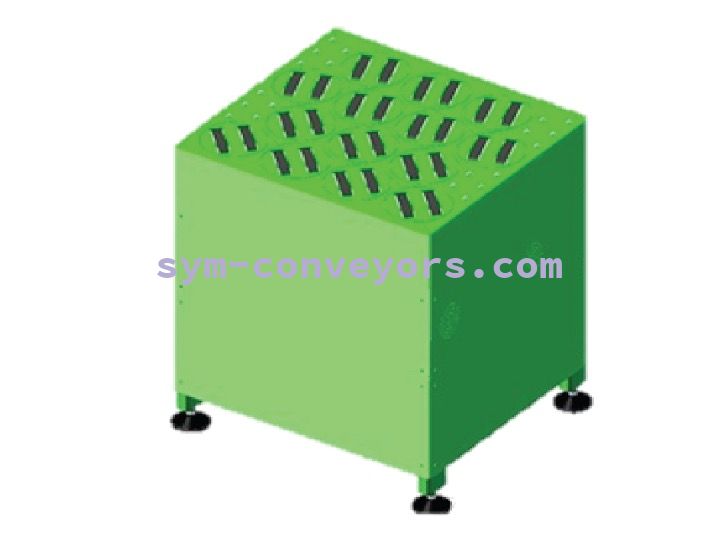

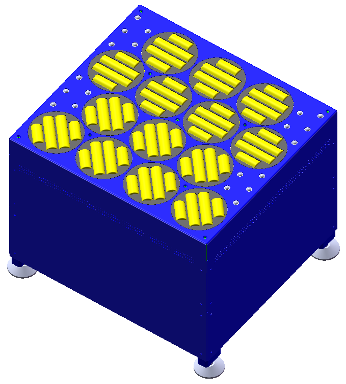

Line Shaft Diverter

Steering Motor

400w high voltage servo motor + decelerator, support tripling overload, maximum speed of 3000r/min.

Driving Motor

Electric drive transmission mode, operating speed adjustable. By default 100m/min

Regular Dimension

Standard size as 700*700 mm, 800*800mm, 600*600mm, etc., and can be customized according to actual requirements. Altitude customizable, generally 800mm+ /-50mm adjustable.

Running Speed

The surface transport speed is 130m/min, speed adjustable via controller, steering speed >= 0.5s.

Transmission Mechanism

Electric drive without O belt structure, modular design, simple to change.

Craftsmanship

Platemetal stoving varnish，color can be customized

Electric Control Design

Modular design, the diagonal wheel is equipped with a separate electric control cabinet, and also can customize the modular access method, using fast connected and used air plug.

Application Scenario

Applications can be applied to most applications, including soft packages, execution, delivery bags, letters, etc

Sorting Efficiency

According to the size of the goods, the general sorting efficiency is within 3000 pcs/h, can reach 6000-8000 pcs/ h via a multi-servo group steering.

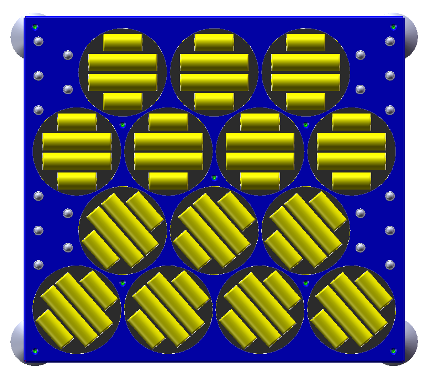

Steering Direction

Options available + / -30 degrees, +  / -45 degrees, + / -60 degrees, + / -90 degrees.

System Docking

Support the switch quantity and TCP to dock the external system.
